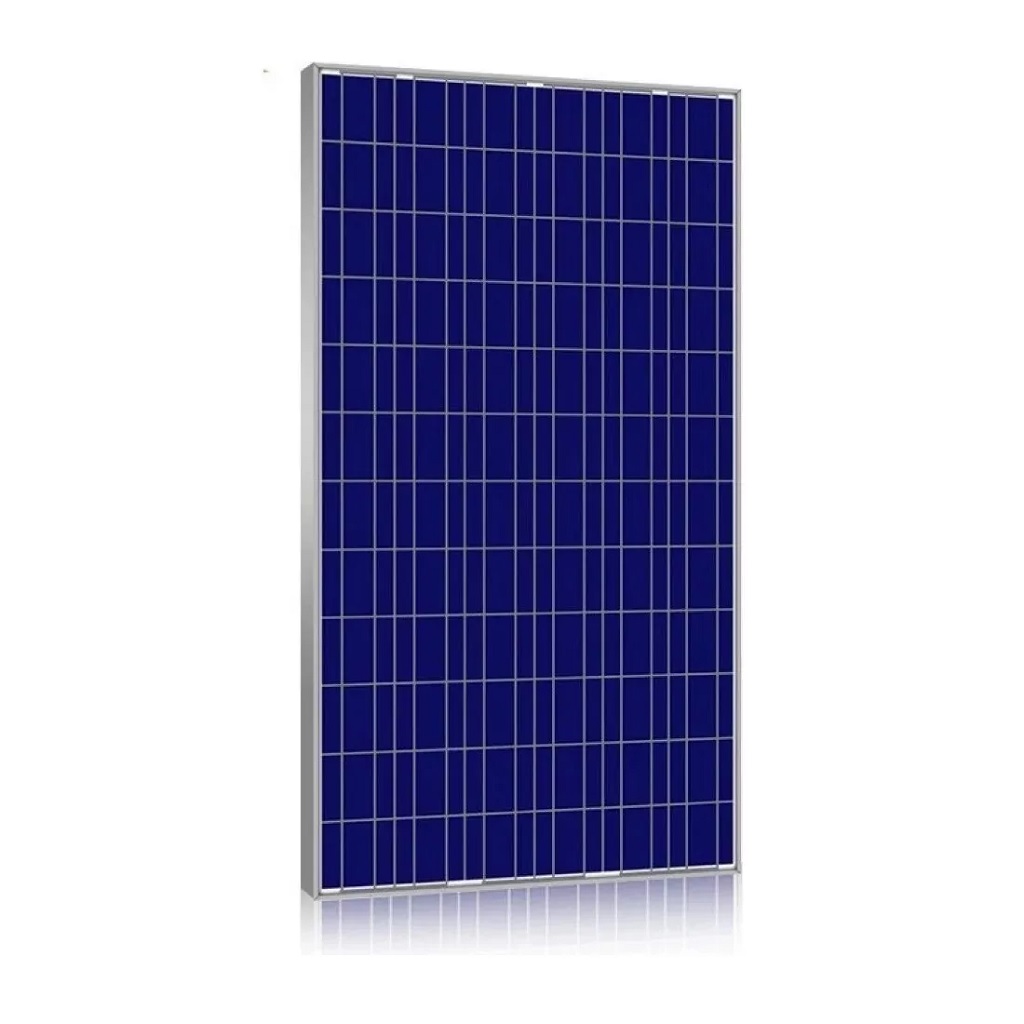

PANEL SOLAR 160W 12V AZUL

Panel Solar 160w 12v 36 Celdas Calidad A

Características principales
Marca: Amerisolar
Modelo: AS-6P
Cantidad de celdas: 36
Potencia máxima: 160 W
Formato de venta: Unidad
Voltaje De Circuito Abierto: 23V
Voltaje Máximo Del Sistema: 18.6V
Eficiencia energética del panel solar: A
Tipo de panel solar: Policristalino

Climatización
Eficiencia energética: A

Medidas y Peso
Ancho x Largo: 67 cm x 148 cm
Peso: 12 kg

Descripción
Nominal Power (Pmax) : 160W
Open Circuit Voltage (VOC) 23V
Short Circuit Current (ISC) : 9,05A
Voltage at Nominal Power (Vmp) : 18,6V
Current at Nominal Power (Imp) : 8,61A
Module Efficiency (%) : 16,22

Cell type: Polycrystalline 156x156mm (6x6inches)
Number of cells: 36 (4×9)
Module dimensions: 1480x670x35mm (58.27×26.38×1.38inches)
Weight: 12kg (26.5lbs)
Front cover: 3.2mm (0.13inches) tempered glass with AR coating
Frame: Anodized aluminum alloy
Junction box: IP65, 2 diodes
Cable: 4mm2 (0.006inches2), 900mm (35.43inches)
Connector: MC4 or MC4 compatible

CERTIFICACIONES:
IEC61215, IEC61730, IEC62716, IEC61701, UL1703, CE, MCS, CEC, Israel
Electric, Kemco
ISO9001: 2008: Quality management system
ISO14001: 2004: Environmental management system
OHSAS18001: 2007 Occupational health and safety management system
